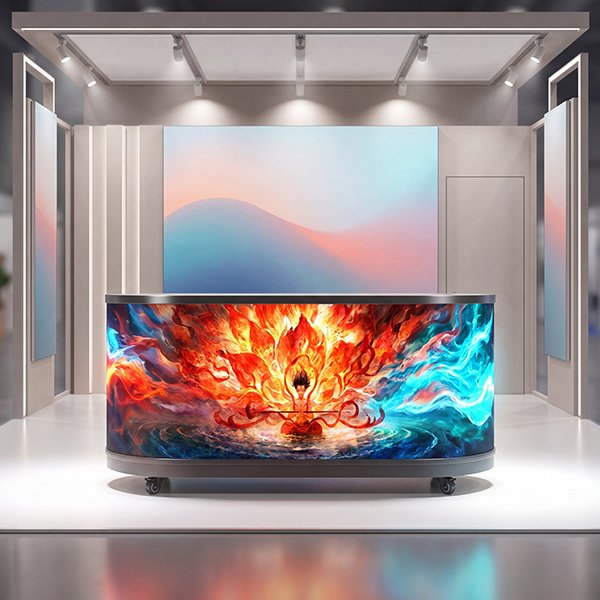

The Curved LED Mobile Counter belongs to the Creative LED Module Series. It offers a versatile stage and reception design paired with ultra HD 4K clarity. This counter provides a high-impact visual area combined with a durable, portable frame to elevate any physical space.
P2.5 (GOB)
P1.8 (GOB)
P2.5 (GOB)
P1.86 (GOB)
Built with a seamless curved LED wall and a highly durable build
Features a mobile base with casters for a compact and portable design
Offers real-time interactive capability managed by intelligent app cloud control
Includes an integrated speaker function and beat-synced visuals for immersive experiences
Engineered with efficient front maintenance and energy-saving technology
Provides an extreme wide viewing angle, dynamic HD content, and high contrast
Hotel & Resort
Auditorium

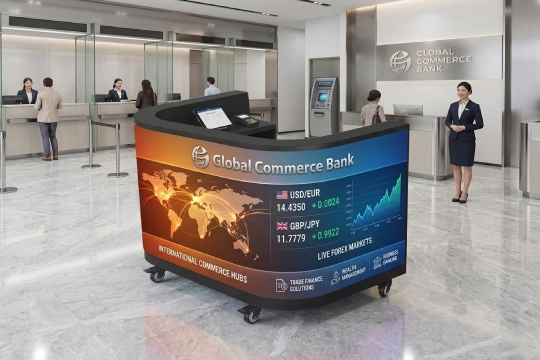

Bank
Exhibitions
| Item | Section X – P2.5 (GOB) | Section X – P1.8 (GOB) | Section D – P2.5 (GOB) | Section D – P1.86 (GOB) |
| Spacing | 2.5 mm | 1.8 mm | 2.5 mm | 1.86 mm |
| Full Screen Pixel | 160,000 | 288,906 | 160,000 | 288,906 |
| Module Size | 320×160×5.2 mm | 320×160×5.2 mm | 320×160×5.2 mm | 320×160×5.2 mm |
| LED Lamp Beads | SMD1515 | SMD1212 | SMD1515 | SMD1212 |
| Module Pixel Point | 128×64 dots | 172×86 dots | 128×64 dots | 172×86 dots |
| Number of Modules | 6×6 | 6×6 | 8×6 | 8×6 |
| Display Size (W×H) | 1920×960 mm | 1920×960 mm | 2560×960 mm | 2560×960 mm |
| Screen Size (W×H×D) | 1065×1060×585 mm | 1065×1060×585 mm | 1065×1060×585 mm | 1065×1060×585 mm |
| Weight | 97 kg | 97 kg | 127 kg | 127 kg |
| Full Screen Resolution | 1024×384 | 1032×516 | 1024×384 | 1376×516 |
| Drive Mode | 32/s | 43/s | 32/s | 43/s |
| Brightness | 500–650 cd/m² | 500–650 cd/m² | 500–650 cd/m² | 500–650 cd/m² |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Gray Scale | 12–16 bit | 12–16 bit | 12–16 bit | 12–16 bit |
| Maintenance Mode | Front maintenance | Front maintenance | Front maintenance | Front maintenance |
| Control System | Novastar | Novastar | Novastar | Novastar |
| Protection Level | IP43 | IP43 | IP43 | IP43 |
| Average Power | 200–900 W | 200–900 W | 200–900 W | 200–900 W |
| Input Voltage | 110–220 V | 110–220 V | 110–220 V | 110–220 V |
| Operating Temperature | -10°C to +60°C | -10°C to +60°C | -20°C to +60°C | -20°C to +60°C |
| Operating Humidity | 10%–85% | 10%–85% | 10%–85% | 10%–85% |
