The Slim Frame LED is a core part of the Creative LED Module Series and serves as a perfect dynamic replacement for traditional backlit posters in indoor applications. Its sleek and slim design allows it to be highly mobile and adaptable to various spaces.
SP 2.5
SP 2.0
SP 1.86
SP 1.538
SP 1.25
Offers HDR Resolution and is available in 1.25, 1.538, 1.86, 2.0, and 2.5mm pixel pitches
Features an integrated media player and local storage to play back any jpeg, video, or visual media
Supports WIFI, allowing simple operation by Android, iOS, or PC devices
Provides an easy-to-operate interface that can be quickly updated via USB or Network connections
Can stand alone as a single display monitor or utilize extended mode to link multiple screens together to create a large surface video display
Built to last with a life span of 100,000 hours and a high refresh rate of ≥3840 Hz

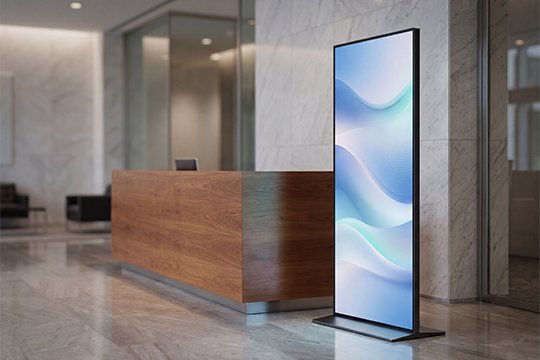

Auditorium

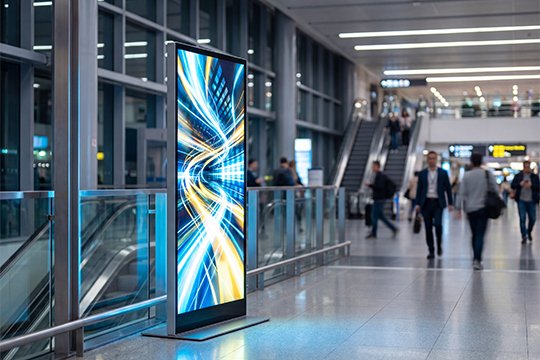

Airport

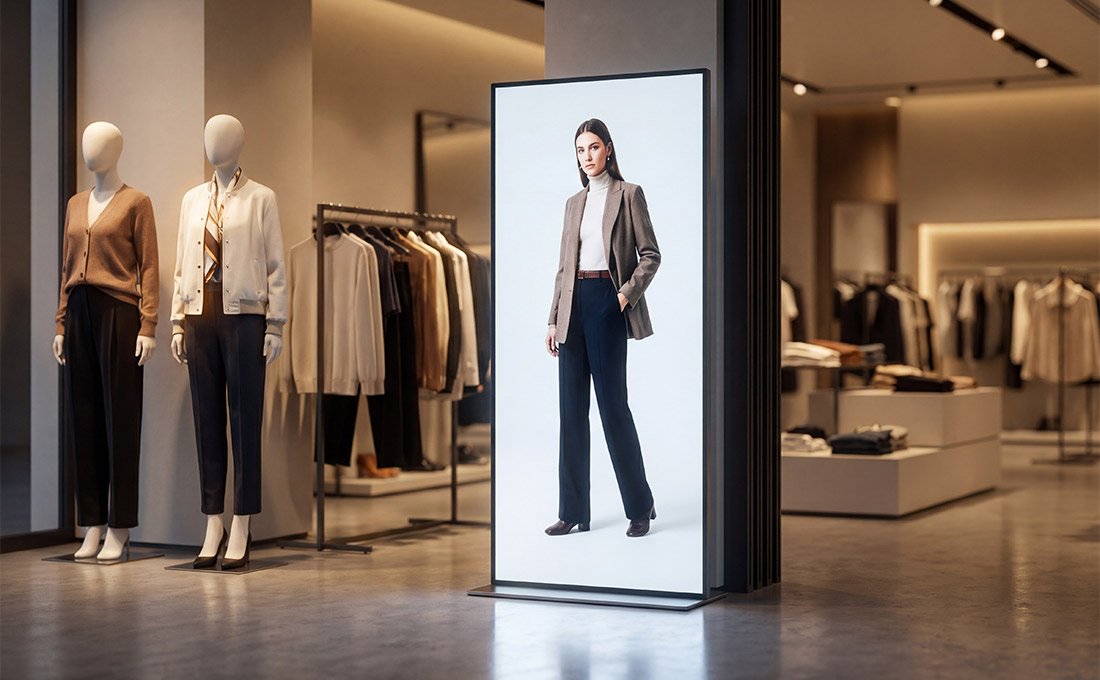

Shoping Mall

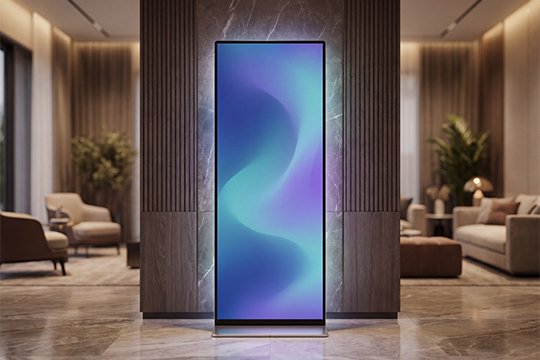

Hospitality & Hotel
| Item | SP 2.5 | SP 2.0 | SP 1.86 | SP 1.538 | SP 1.25 |
| Lamp Chip | SMD2020 | SMD1515 | SMD1515 | SMD1212 | SMD1010 |
| Pixel Pitch (mm) | 2.5 | 2.0 | 1.86 | 1.538 | 1.25 |
| Module Size (H×W) | 160×320 mm | 160×320 mm | 160×320 mm | 160×320 mm | 160×320 mm |
| Module Resolution (H×W) | 64×128 | 80×160 | 86×172 | 104×208 | 128×256 |
| Scan Way | 1/32 scan | 1/32 scan | 1/32 scan | 1/32 scan | 1/32 scan |
| Module Array (H×W) | 12×2 | 12×2 | 12×2 | 12×2 | 12×2 |
| Screen Resolution (H×W) | 768×256 | 960×320 | 1032×344 | 1248×416 | 1536×512 |
| Display Area | 1920×640 mm | 1920×640 mm | 1920×640 mm | 1920×640 mm | 1920×640 mm |
| Frame Size | 1936×656×35 mm | 1936×656×35 mm | 1936×656×35 mm | 1936×656×35 mm | 1936×656×35 mm |
| Weight/m² | 35 kg | 35 kg | 35 kg | 35 kg | 35 kg |
| IP Grade | IP40 | IP40 | IP40 | IP40 | IP40 |
| Input Power | AC 240/100 ±10% | AC 240/100 ±10% | AC 240/100 ±10% | AC 240/100 ±10% | AC 240/100 ±10% |
| Service Access | Rear | Rear | Rear | Rear | Rear |
| Max Power Consumption | 600 W | 550 W | 500 W | 500 W | 500 W |
| Avg Power Consumption | 200 W | 185 W | 170 W | 170 W | 170 W |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness | 800–1000 nits | 800–1000 nits | 800–1000 nits | 800–1000 nits | 800–1000 nits |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Humidity | 10%–90% | 10%–90% | 10%–90% | 10%–90% | 10%–90% |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Display Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
