The Indoor RCS Hemispherical Led Globe P2.5 GOB is a stunning centerpiece screen with a diameter of 1m. Utilizing a 2.5mm spherical screen dot spacing and surface-mounted three-in-one LED beads, it pushes a total of 502,400 pixels across a 3.14㎡ display area for a fully immersive viewing experience
P2.5 (GOB)
P1.8 (GOB)
P2.5 (GOB)
P1.86 (GOB)
Delivers ultra-smooth motion with a high refresh frequency of 3840Hz and a perspective of H160°/W160°
Display brightness is software adjustable up to 100 levels
Provides excellent planeness with a unit board splicing gap of <1mm and precise pixel alignment
Maintains uniform pixel intensity and brightness with an extremely low bad pixel rate
Operates via constant current drive and supports multiple video signals including RF, S-Video, RGB, and YUV

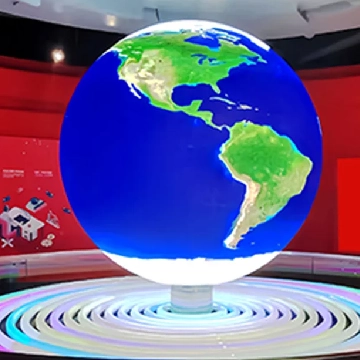

Science Centers

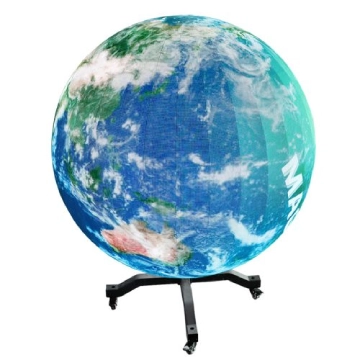

International Exhibitions

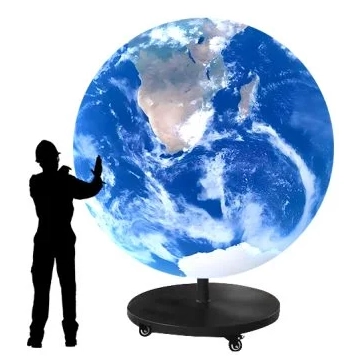

Corporate Headquarters

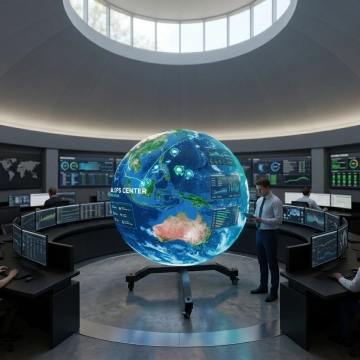

Control Rooms
| No | Project | Parameter |
| 1 | Lamp bead packaging method | Surface mounted three in one LED bead |
| 2 | Spherical screen diameter | 1 m |
| 3 | Spherical screen dot spacing | 2.5 mm |
| 4 | Spherical screen display area | 3.14 m² |
| 5 | Total pixels of spherical screen | 502400 spot |
| 6 | Module size | Customized |
| 7 | Module pixel | Customized |
| 8 | Scanning method | 1–32 sweep |
| 9 | Refresh frequency | 3840 Hz high refresh rate |
| 10 | Display brightness | ≥ 5.0 cd/m² |
| 11 | Total weight of spherical | About 120 kg |
| 12 | Adaptive distance | 2 m ~ 50 m |
| 13 | Pixel density | 160000 spot/m² |
| 14 | Perspective | H160° / W160° |
| 15 | Power supply requirements | 110V / 220V, 50–60Hz |
| 16 | Brightness adjustment method | Software adjustable up to 100 levels |
| 17 | Frame switching speed | ≥ 60 Hz |
| 18 | Color temperature | 1000K ~ 10000K (Adjustable) |
| 19 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC, Composition |
| 20 | Lifetime | 100000 hours (theoretical value) |
| 21 | Planeness | Adjacent pixels ≤ 0.5 mm; unit board splicing gap ≤ 1 mm |
| 22 | Uniformity | Uniform pixel intensity and board brightness |
| 23 | Bad pixel rate | < 0.0002 |
| 24 | Switching power supply load | 5V/40A, 5V/60A |
| 25 | Computer display mode | 1920×1080 (recommended) |
| 26 | Drive mode | Constant current |
| 27 | Work environment | -30°C ~ +55°C, 10% ~ 88% RH |
| 28 | Effective communication | Network cable ≤ 100 m; multimode fiber ≤ 500 m; single-mode fiber ≤ 20 km |
| 29 | Module joint | ≤ 0.5 mm |
| 30 | Input signal source | S-Video, RGB, RGBHV, YUV, YC, Composition |
| 31 | Run the system | Windows 98 / 2000 / XP / Win7 |
| 32 | Storage temperature | -40°C ~ +85°C |
| 33 | Working temperature | -20°C ~ +50°C |
| 34 | Operating humidity | 10% – 90% RH |
| 35 | Maximum power consumption | 680 W/m² |
| 36 | Average power consumption | 350 W/m² |
| 37 | Control system | (Not specified) |
